Eaton 9A 2000VA (Tower) 2000VA/1800W Online

Model	9A2000i
Rating (kVA/kW)	2000VA/1800W
Format	Tower
Electrical Characteristics
Topology	Online Double Conversion UPS
Nominal Voltage	220/230/240VAC
Input Voltage Range	100-300V
Output Voltage / THDv	220/230/240VAC, ±1%, THDv <2% linear load, <6% non linear load
Output Frequency / THDI	50/60 Hz, THDI 5 % typical, 7% Max

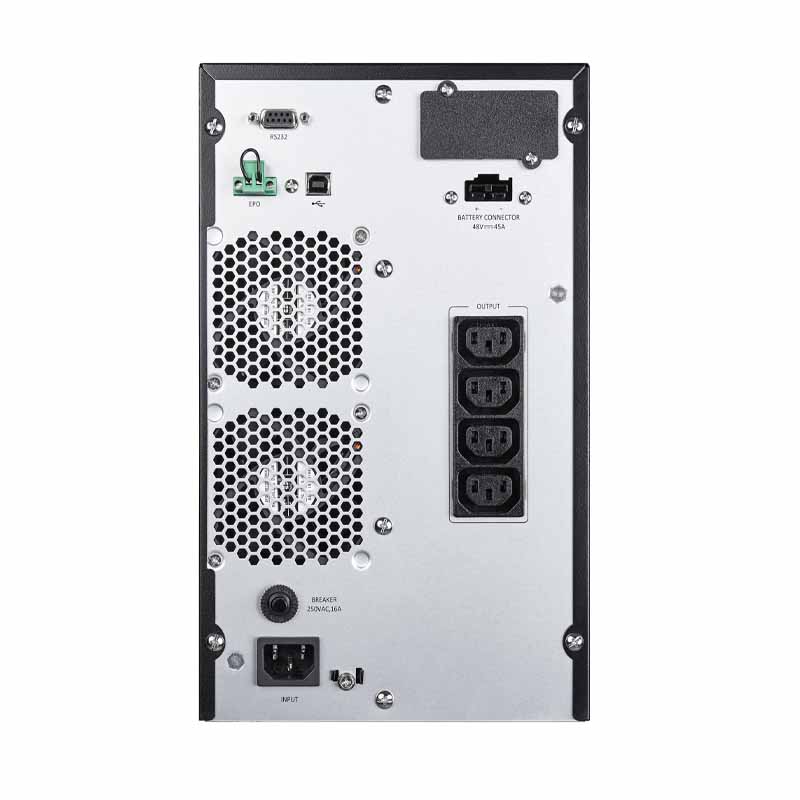

Connections
Input	IEC C14
Outputs	(4) IEC 320 C13
Batteries
Battery Capacity	4 x 12V/9Ah
9A @ 100% load	4mins
9A +1 EBM @ 100% load	26mins
Charging Current	1.5A
EBM	Up to 4 EBM, easy battery replacement for Rack
Physical
IP protection level	IP20
Dimensions (W x H x D) mm	190 x 330 x 400
Communication
LCD DISPLAY	Segment LCD, special red text indication in case of warning & error.
COMMUNICATION	RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
Connectivity Card	NMC G1/AS400 /CMC G1 modbus
Software	WinPower / VCOM
Operating Environment, Standards and Approvals
Temperature range	0~40 °C
Relative Humidity	0-95%（Non-condensing）
Operating Altitude	0~3000m
Noise levels	<50dB
Approvals and marking	CE, KC, TISI, IEC 62040-1,IEC 62040-2
Warranty
Warranty	3 Years
